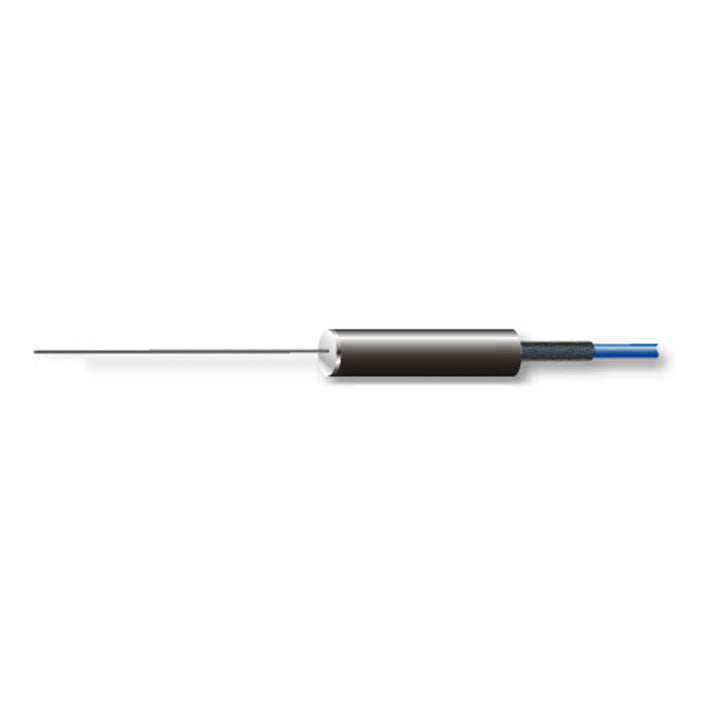

JB-16-K-1.6-100-1000-6C/A

JB-16-K-1.6-100-1000-6C/A

$206.00 USD
$206.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.


[Specifications]

Type JB-16
Input type Thermocouple K
Protection tube diameter ø1.6
Available with sheath diameter of 1.0mm/2.3mm/4.8mm/6.4mm.
Protection tube 100mm
Cable length

1m
Please contact distributors for cable length more than 1m.
Connector type Connector for DP-700
Cable type Silicon rubber coated cable
(Blue) Standard type

[General Specifications]

Response time

ø1.6: Response of 95%  1.00 sec (Boiling Water)
         Response of 63%  0.15 sec (Boiling Water)
ø3.2: Response of 90%  2.50 sec (Boiling Water)
         Response of 63%  0.50 sec (Boiling Water)
Resistance value
(With cable 1m)

ø1.6: 3.9Ω
ø3.2: 1.7Ω
Accuracy

Less than 333°C : ±2.5°C
More than 333°C : ±0.0075•|t|
(t=Measured temperature)
